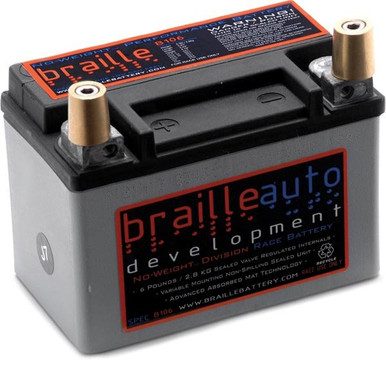

Braille B106 Ultra lightweight race only Battery
)
Product Description
NEW PRODUCT! Braille developed the B106 to excel at racing by designing in durability and weight reduction to help shave those last couple pounds from your racing vehicle. Weight is the enemy and this is the ultimate way to make your vehicle lighter than your competitor!
Product Details
- MODEL NUMBER: Braille SKU #B106
- Model Name: 6lb Race
PERFORMANCE
| Voltage: | 12 |
| Pulse Cranking Amps: | 527 |
| Cranking Amps @ 32 F: | 283 |
| Cold Cranking Amps @ 0 F: | 210 |
| Reserve Capacity: | 20 minutes |
| Capacity (C/20 rate): | 11 amp hr |
| Internal Resistance (ohms): | 15.8 milliohms (.0158ohms) |
| Short Circuit Current: | 760 |
| Length: | 5.8 |
| Width: | 3.4 |
| Height: | 4.1 |
| Minimum Weight (lbs): | 6.3 lbs |
| Post Type: | SAE Automotive Vertical or Horizontal + bolt through |
| BCI Group: | Usable for all Group Sizes |
| Stainless Stud: | Both Automotive SAE Posts and Race Style Bolts are Stainless with a 6 x 1.0mm bolt pitch |
| CHARGING INFORMATION | |
| Recommended charging information: | Braille Electronic Charger |
| Alternator: | Automotive, Marine and Cycle Compatible |
| Battery charger: | Braille Model B12V2AHEBC - 2 amp hour charger |
| Rapid Recharge: | Yes, 10-20 amp - electronically controlled only |
| Maximum current: | 30 amp/hr for 15 min |
| Maximum recharge Voltage: | 14.8 - 15.2 volts |
| Float charge: | 13.2 volts - 13.5 volts |
Recommended Uses:
- Extreme Lightweight Vehicles – Full Race Cars
- Extreme Audio Builds with Very Small Space and a need for multiple batteries.
- Custom Cars / Choppers– No Acid to Spill - protect and enhance your vehicle!
Not Recommended For:
- Cold Climates
- Long Term Storage
- Large Displacement Motors with High Compression
Enhanced Mat Technology (more surface area on the lead plates) combined with calcium full frame power path grids (increase cranking power), yields over 520 Pulse Cranking Amps.
The B106 is a sealed unit that can be mounted in any position safely using its adjustable automotive terminal posts & is approved for racing by all major sanctioning bodies. Braille also includes a one-year free replacement limited warranty that is not pro-rated.
